Solar Protection: Louvres
» Allows for light adjusment: Energy efficiency
» Versatility: Customised dimensions for each project
» 2 louvre types: fixed and adjustable
» Especially adequate for great dimensions areas, such as façades or curtain walls.

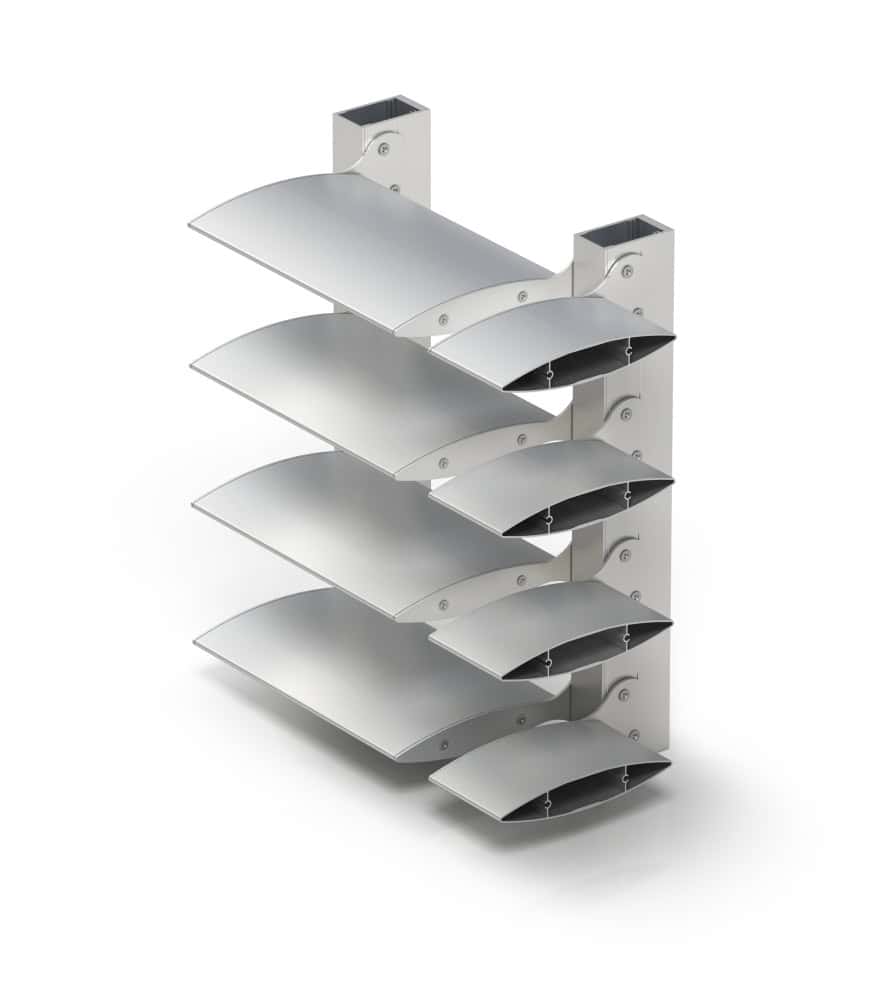

» Louvre types
Fixed: 0º, 15º, 30º or 45º
» Maximum suggested lengths
Louvre 120 mm: Fixed louvres 1.8 m
Louvre 145 mm: Fixed louvres 2.2 m / Adjustable louvres: 1.9 m
Louvre 190 mm: Fixed louvres 2.5 m / Adjustable louvres: 2.4 m
Louvre 250 mm: Fixed louvres 3.0 m / Adjustable louvres: 3.0 m
Louvre 300 mm: Fixed louvres 3.5 m / Adjustable louvres: 3.4 m
Louvre 400 mm: Fixed louvres 4.2 m / Adjustable louvres: 4.0 m
Depending on project specifications.

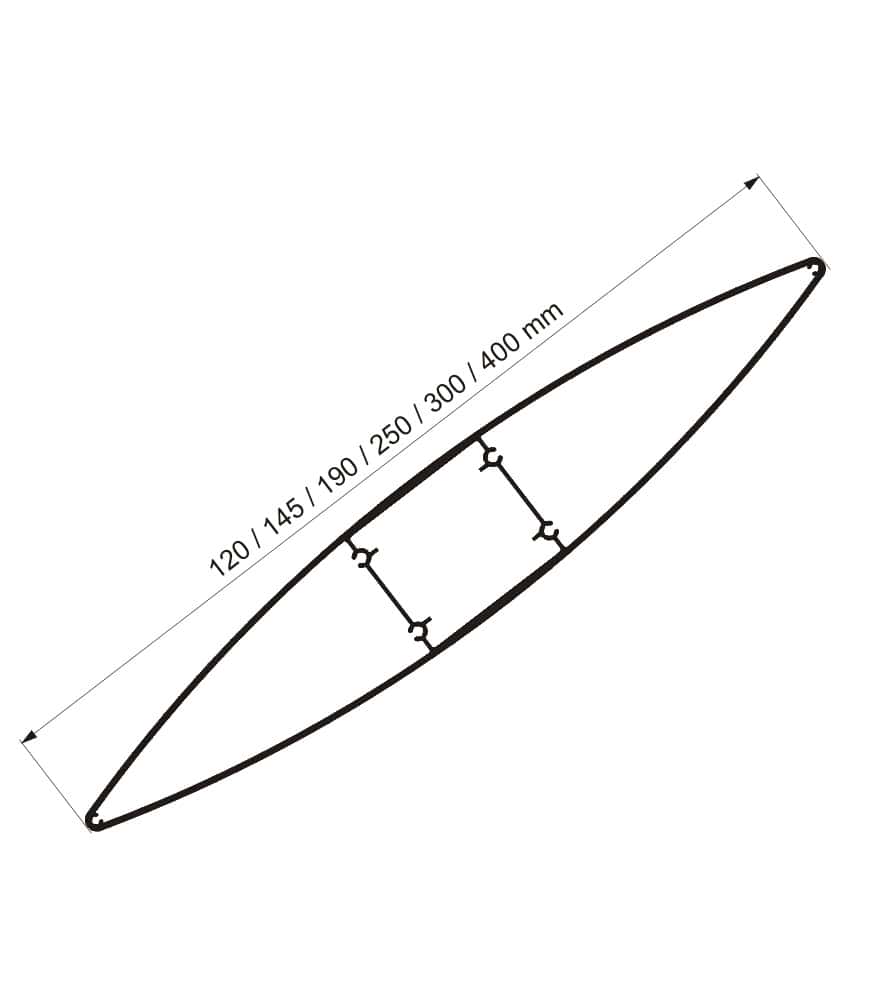

» Profile thicknesses
Louvres 120 mm: 1.25 mm
Louvres 145 mm: 135 mm
Louvres 190 mm: 1.70 mm
Louvres 250 mm: 1.90 mm
Louvres 300 mm: 2.00 mm
Louvres 400 mm: 2.50 mm
» Finishes
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
»Wind loading resistance
(EN 13659) CLASS 6 (max)
Test carried out according UNE 1932
Reference test:
Louvres 120 mm / 1.8 m
Louvres 145 mm / 2.0 m
Louvres 190 mm / 2.5 m
Louvres 250 mm / 3.0 m
Louvres 300 mm / 3.5 m
Louvres 400 mm / 4.2 m
