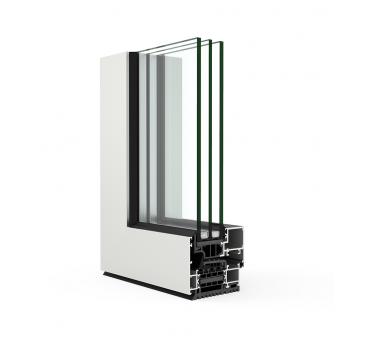

COR 80 Hidden Sash
Elegant Design with Maximized Glazed Surface

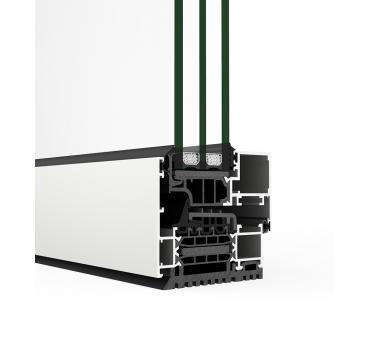

This system features an elegant design with a straight aesthetic, concealing the sash behind the frame.
The concealed sash maximizes the glazed surface and enhances natural light entry into the space.
It offers excellent thermal and acoustic performance with a 45 mm thermal break.
The system supports glazing up to 51 mm, allowing for triple-glazing installation.
Possibilities
Enhanced Security and Sleek Design
The system includes advanced security hardware for added protection.
It features concealed hinges and a discreet handle for a seamless aesthetic.
Additionally, the concealed drainage ensures a clean and modern appearance.
» Glazing
Max. 51 mm
Min. 36 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only
Parallel Sliding

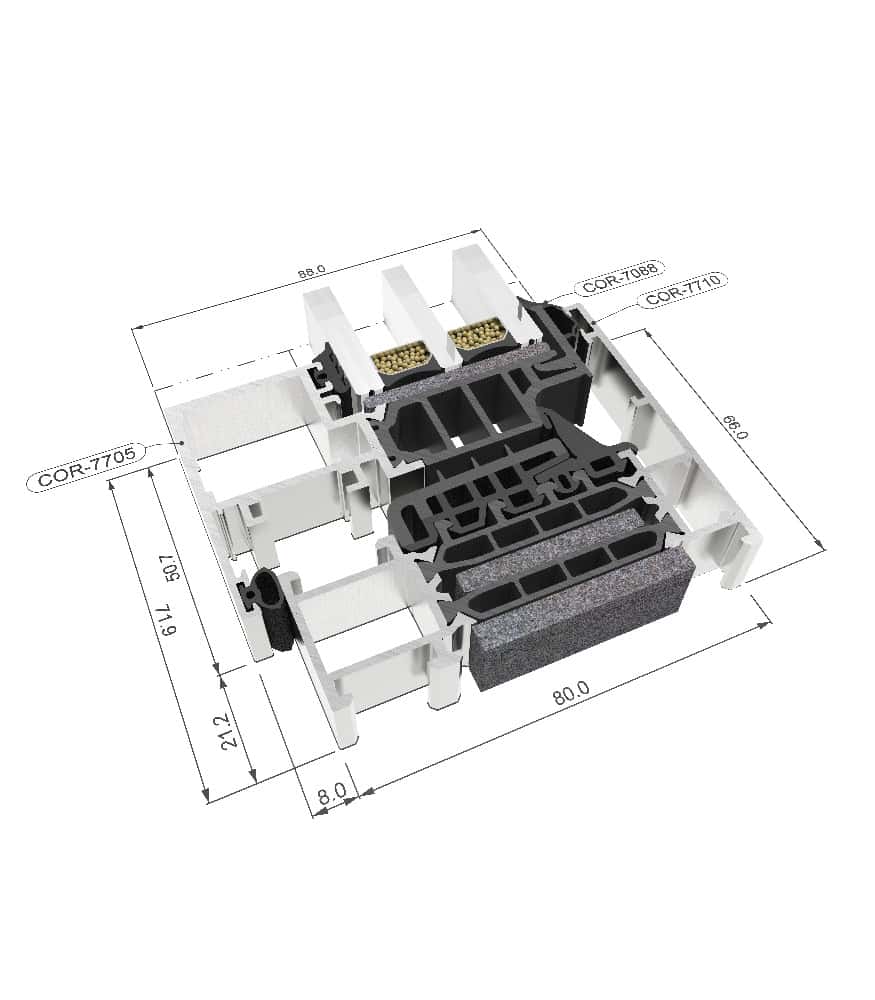

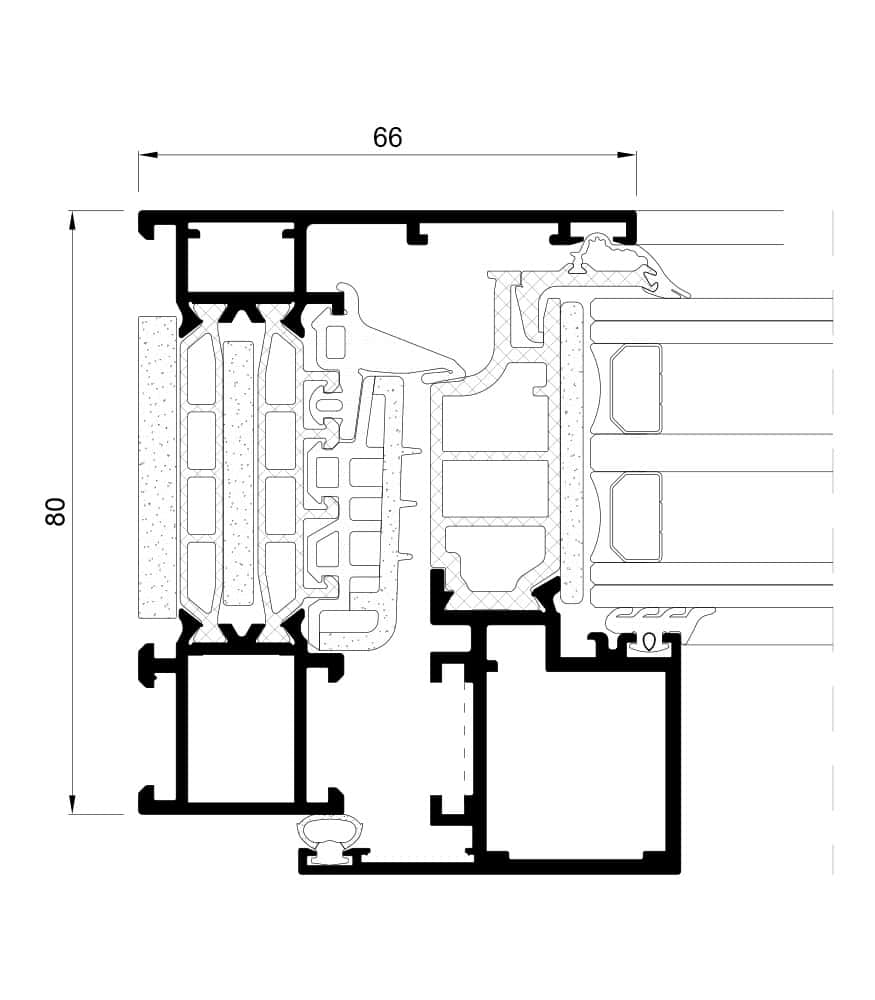

» Sightlines
Frame 80 mm
Sash 80 mm
» Profile thickness
Window 1.9 mm
» Polyamide strip length
45 mm
» Maximum sash dimensions
Standard Solution
Width (L) 1,300 mm
Height (H) 2,400 mm
HD Hinges (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm
» Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
Uw ≥ 0.7 (W/m2K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 46 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1650
» Wind resistance
(EN 12210) Class C5
Reference test 1.23 x 1.48 m / 2 sashes
