TP 52 Façade

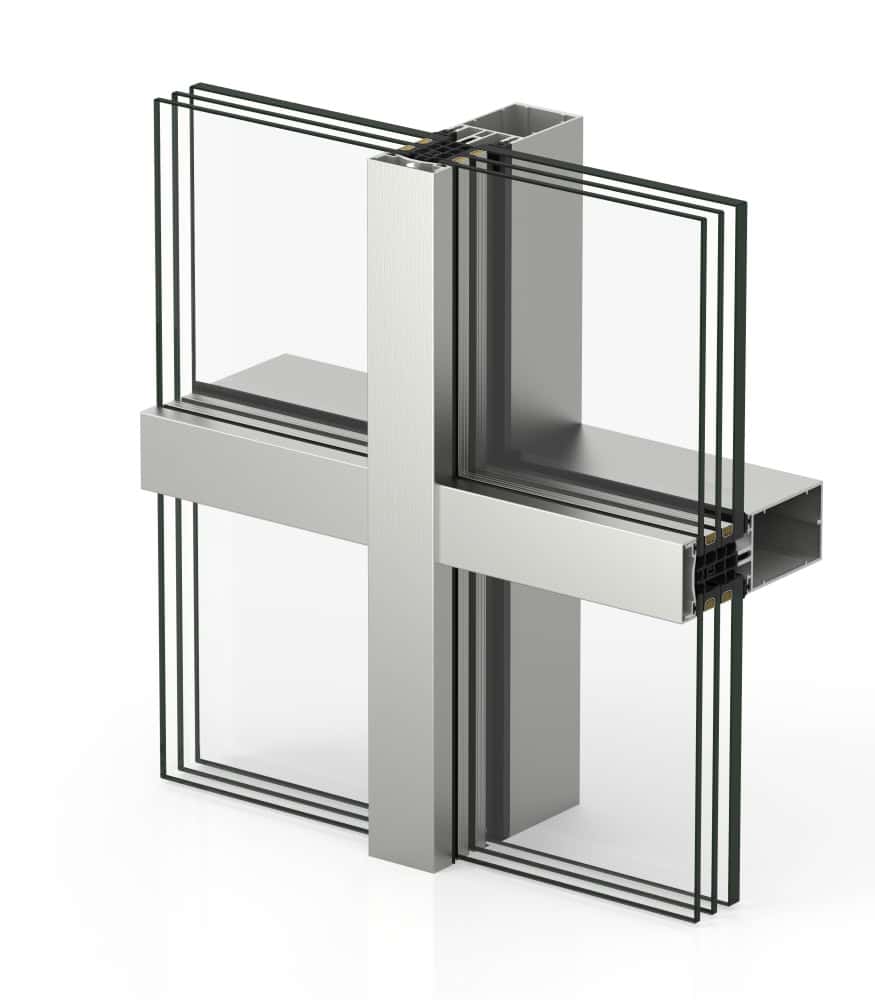

Variety of Mullions and Transoms
The system offers mullions (16 to 230 mm) and transoms (22.5 to 205.5 mm) for various architectural needs.

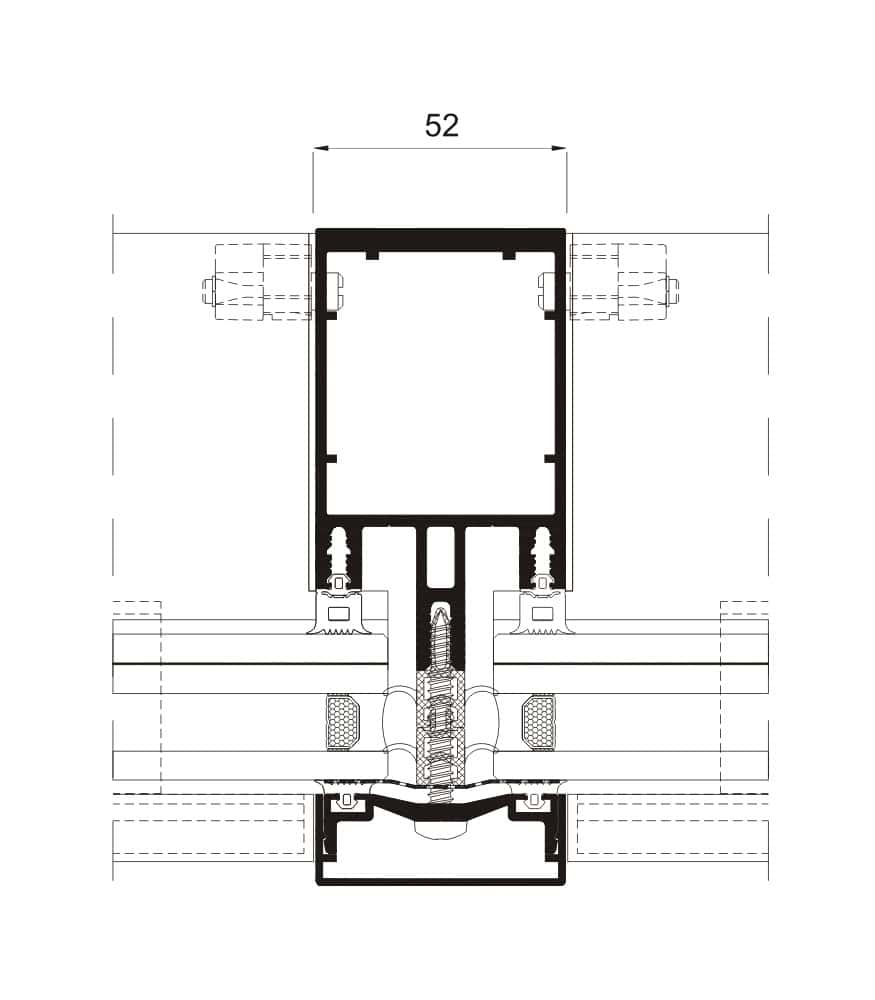

Internal Section
It features an internal visible section of 52 mm.
Extensive Profile Range
The system's mechanical unions allow for all types of façades, including vertical, inclined, 90° corners, and polygonal shapes.
It also supports large and heavy glazing.
Water Tightness Elements
Includes drainage pipettes, tear strip gaskets, and vulcanized angles.

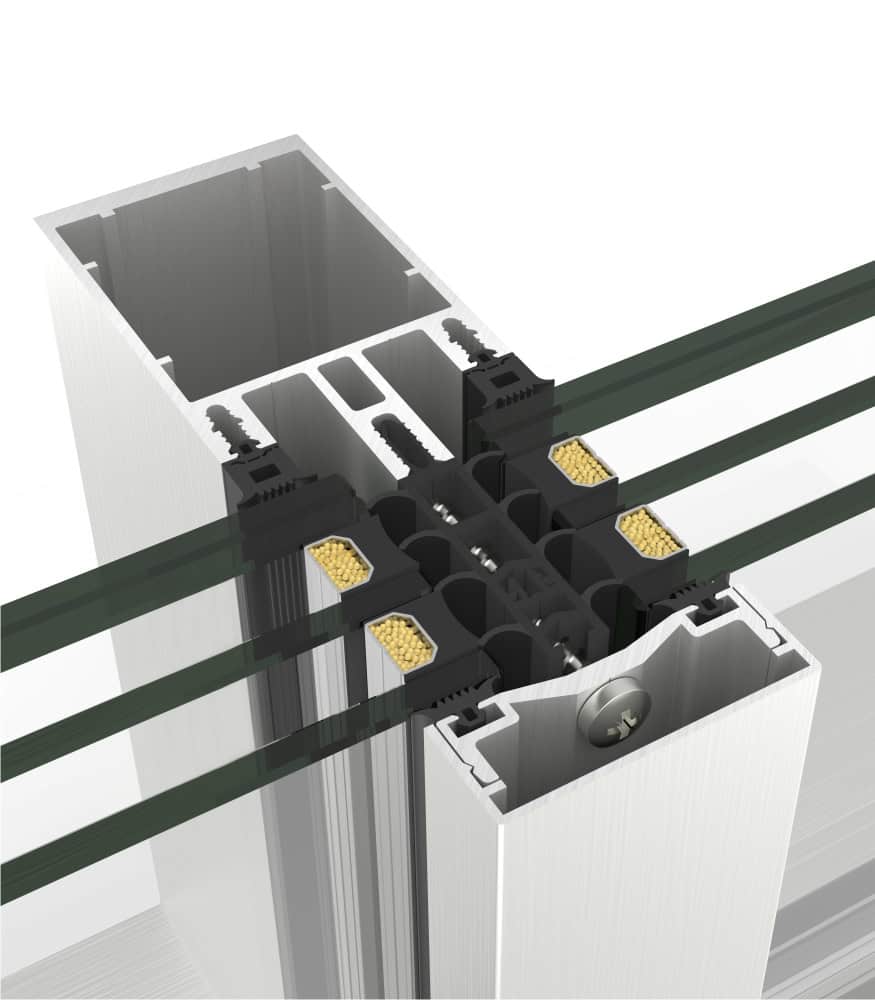

Glass Fixing
A pressed profile is used to fix the glass to the supporting profiles.
This profile is screwed to the mullions and transoms and covered with a cover profile.
Thermal and Acoustic Performance
The system provides excellent thermal and acoustic properties.
» Glazing
Maximum glazing 64 mm
Mínimum glazing 4 mm
*Consult us for greater thicknesses
» Opening possibilities
Hidden turn&tilt
Hidden side hung
hidden top hung projecting
» Sections
Mullion 52 mm
Transom 52 mm
» Profile thickness
Mullion 2.1 and 3 mm
Transom 2.1 mm
» Polyamide strip length
6, 12 & 30 mm stackable profiles
» Minimum / Maximum opening dimensions
Hidden Top hung
Min. Width (L) = 500 mm
Min. Height (H) = 650 mm
Max. Width (L) = 2500 mm
Max. Height (H) = 2500 mm
Hidden Parallel Projecting
Min. Width (L) = 530 mm
Min. Height (H) = 530 mm
Max. Width (L) = 2000 mm
Min. Height (H) = 3000 mm
Hidden Side Hung / Turn&Tilt
Min. Width (L) = 500 mm
Min. Height (H) = 600 mm
Max. Width (L) = 1400 mm
Min. Height (H) = 1900 mm
» Maximum weight / sash
Hidden Top hung 180 kg
Hidden Parallel Projecting 200 kg
Hidden Side Hung / Turn&Tilt 100 kg
» Maximum weight of fixed lights
750 kg
Consult maximum weight and dimensions according to typologies
» Covers
85 mm deep elliptical cover
H shape cover, 34 mm deep
Rectangular cover: 14, 19 100 & 145 mm deep
Pyramid shape cover, 155 mm deep
» Finishes
Powder coating / Anodised
» Transmittance
Ucw from 0.6 (W/m²K)
Please consult dimensions and glazing
» Certification CWCT British Standard
» Air permeability
(EN 12152) CLASS AE
» Water tightness
(EN 13114) CLASS RE1500
» Wind resistance
(EN 13116) APT
(Design loading 2000 Pa – security loading 3000 Pa). Test reference 3.00 x 3.50 m.
