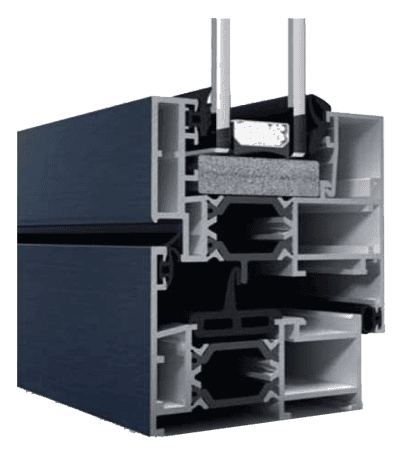

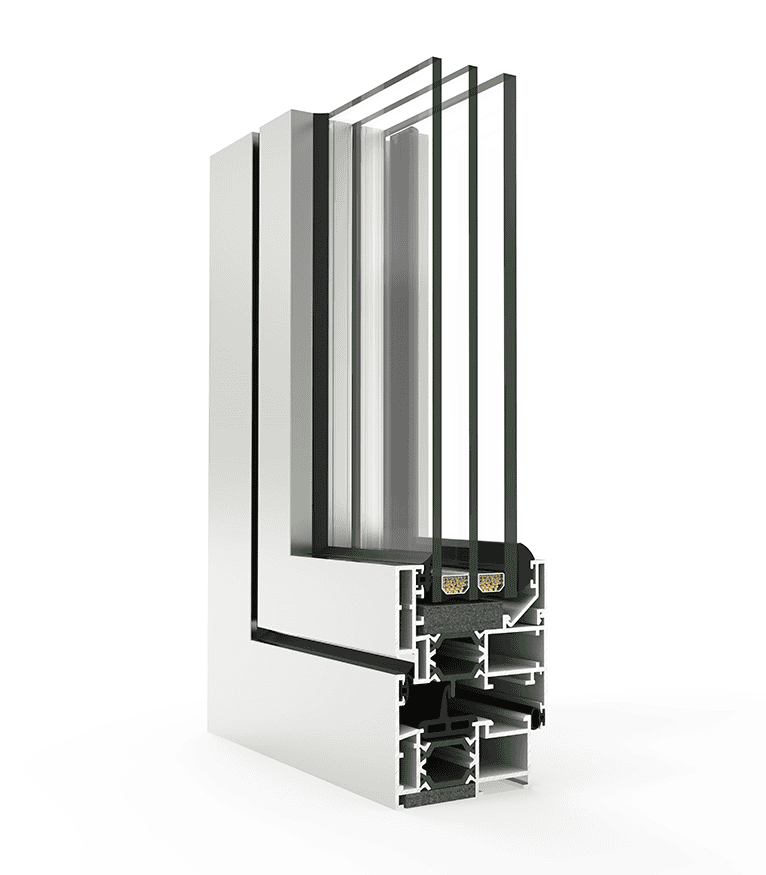

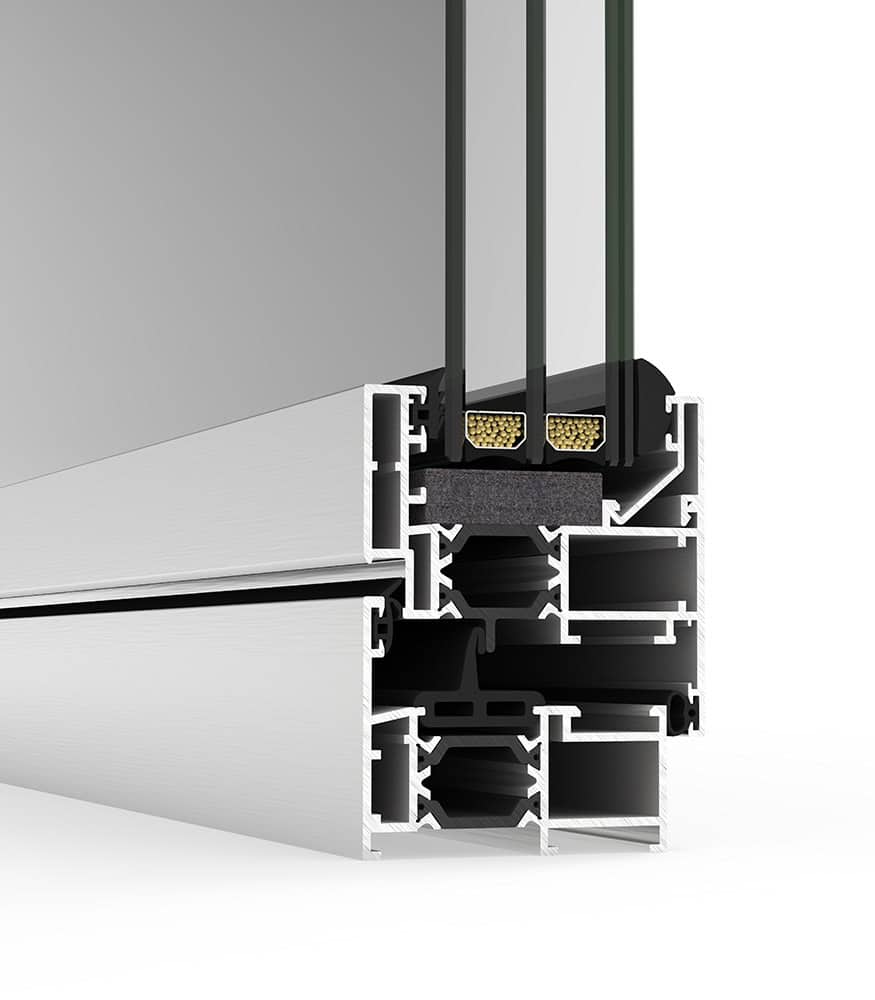

COR 60 TB
Hinged system with 60 mm of frame depth, featuring 24 mm polyamide strips, which provides a notable thermal and acoustic comfort, achieving a noise reduction of up to 48 dB.
Possibilities
» Security hardware
» Concealed hinges
» Accessibility
» Glazing
Max. 46 mm
Min. 5 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Parallel Sliding
Bottom hung
Outward opening
Side hung
Top hung
Pivoting on horizontal or vertical axis

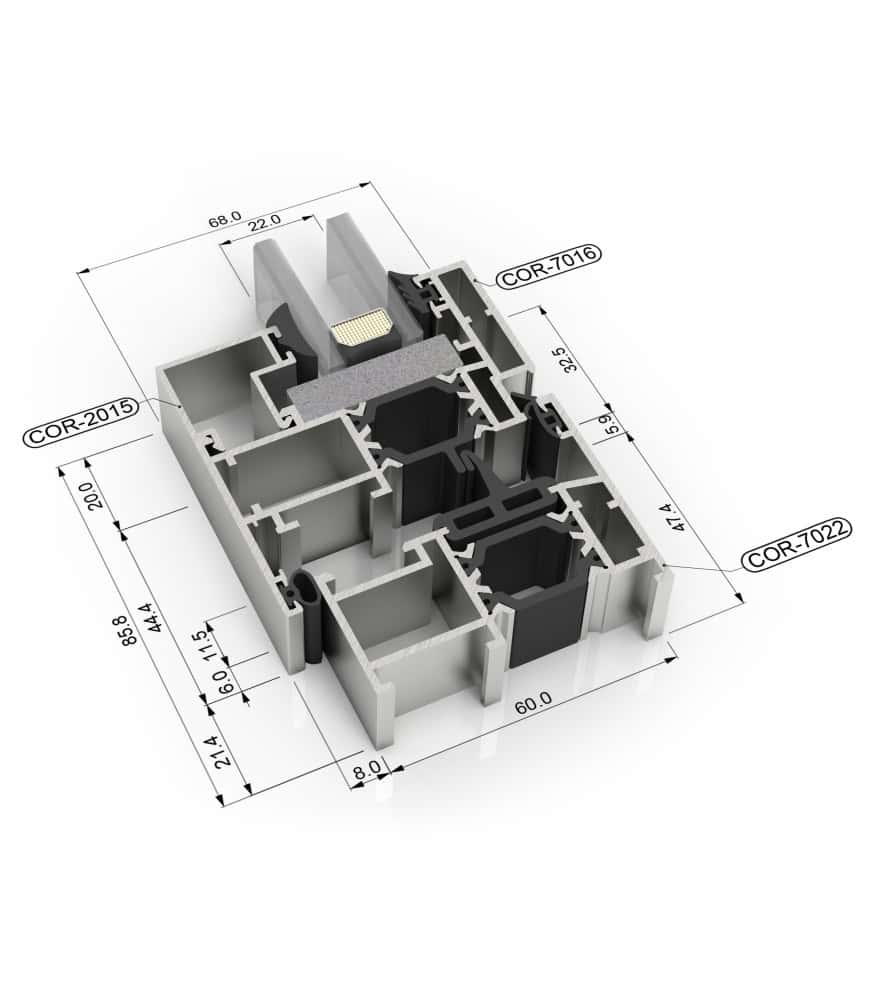

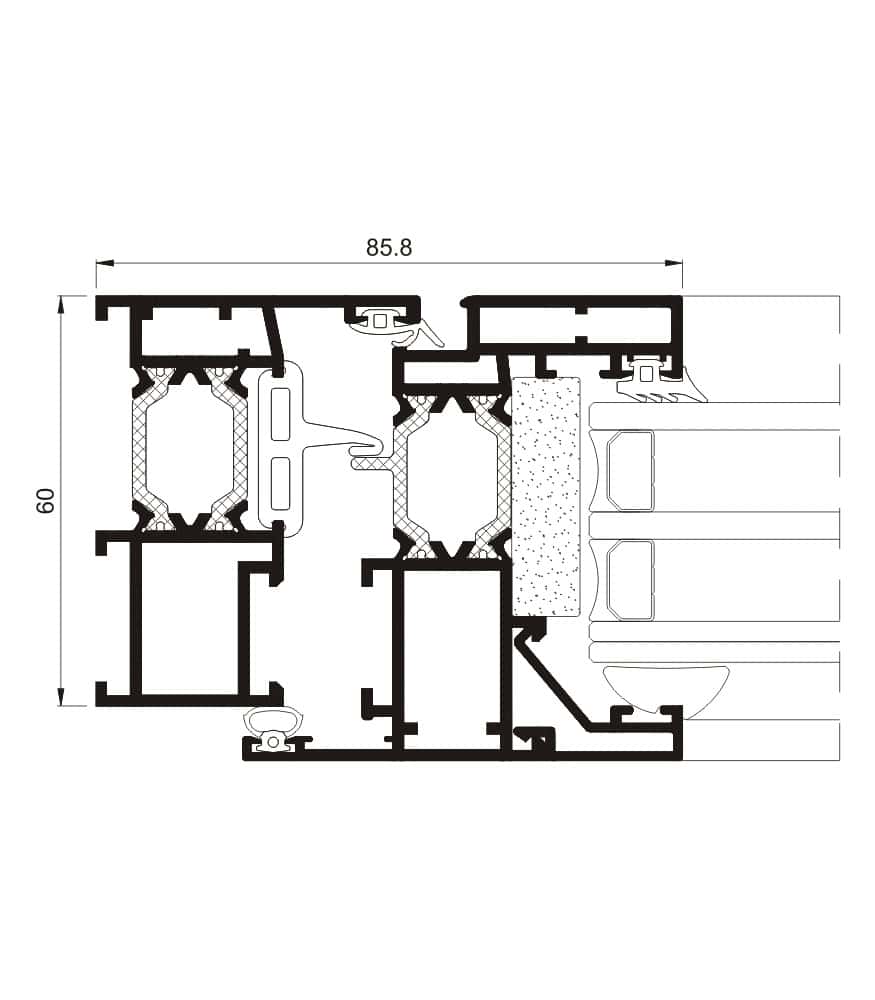

» Sightlines
Frame 60 mm
Sash 68 mm
» Profile thickness
Window 1.6 mm
Door 1.6 mm
» Polyamide strip length
24 mm
» Maximum sash dimensions
Width (L) 1,500 mm
Height (H) 2,600 mm
» Maximum sash weight
160 kg
» Aesthetic possibilities
Sash: Straight or curved / Bead: Straight or curve
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
Uw ≥ 1.0 (W/m²K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 48 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1350
» Wind resistance
(EN 12210) Class C5
Reference test 1.20 x 1.16 m / 2 sashes
