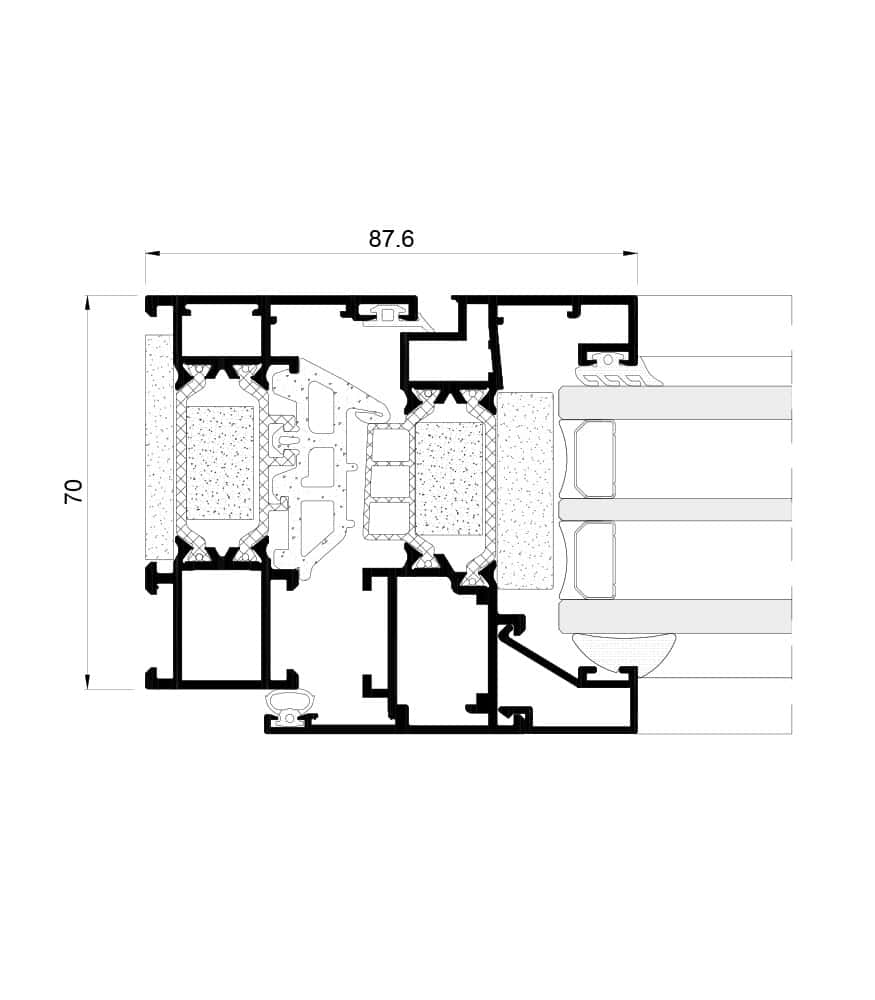

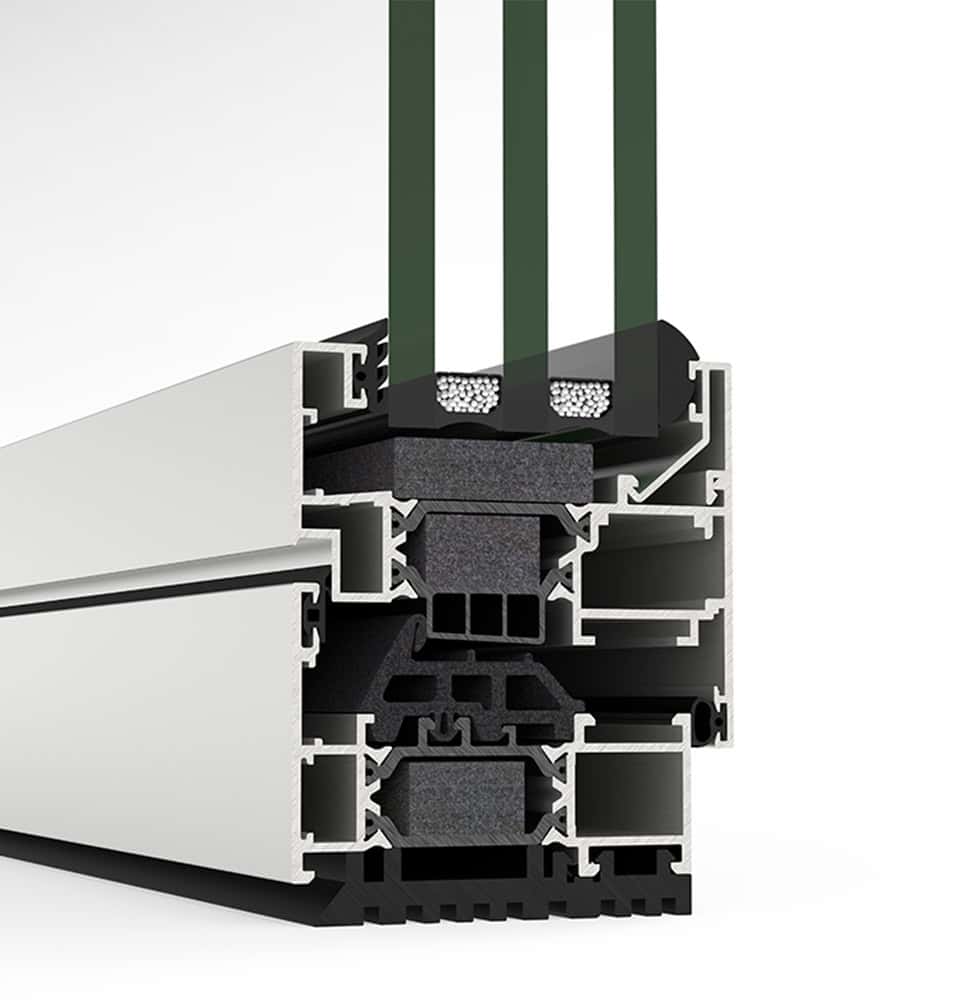

COR 70 Industrial TB
This 70 mm frame depth hinged system offers great thermal and acoustic performance combined with very simple fabrication, which is why it has become one of the most demanded series for aluminium windows, doors and balconies.
Endless Possibilities for a Seamless Design
This system offers advanced security hardware for enhanced protection.
It includes concealed hinges and a discreet handle for a sleek look.
Concealed drainage adds to the system's clean and modern design.
» Glazing
Max. 63 mm
Min. 6 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Parallel Sliding
Tily only
Outward opening
Side hung
Top hung
Pivoting on horizontal or vertical axis
» Sightlines
Frame 70 mm
Sash 78 mm
» Profile thickness
Cor 70 Indsutrial:
Window 1.5 mm
Door 1.7 mm

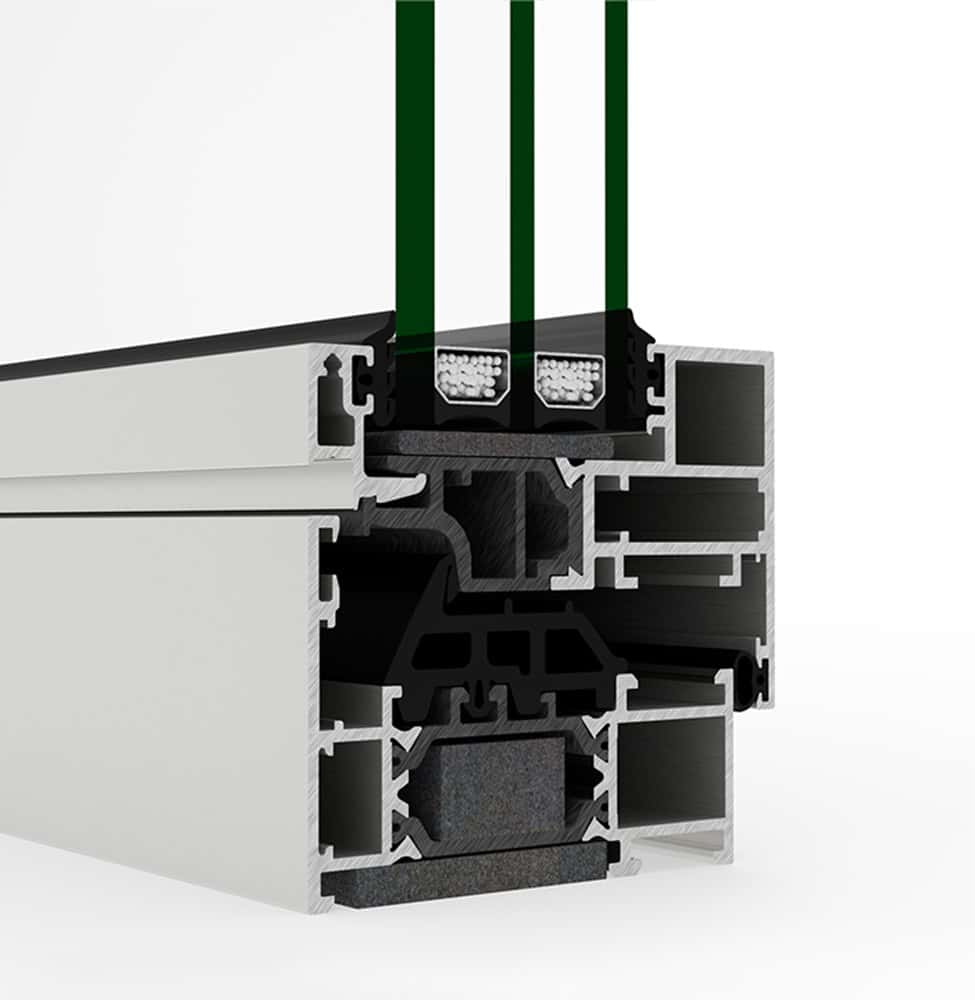

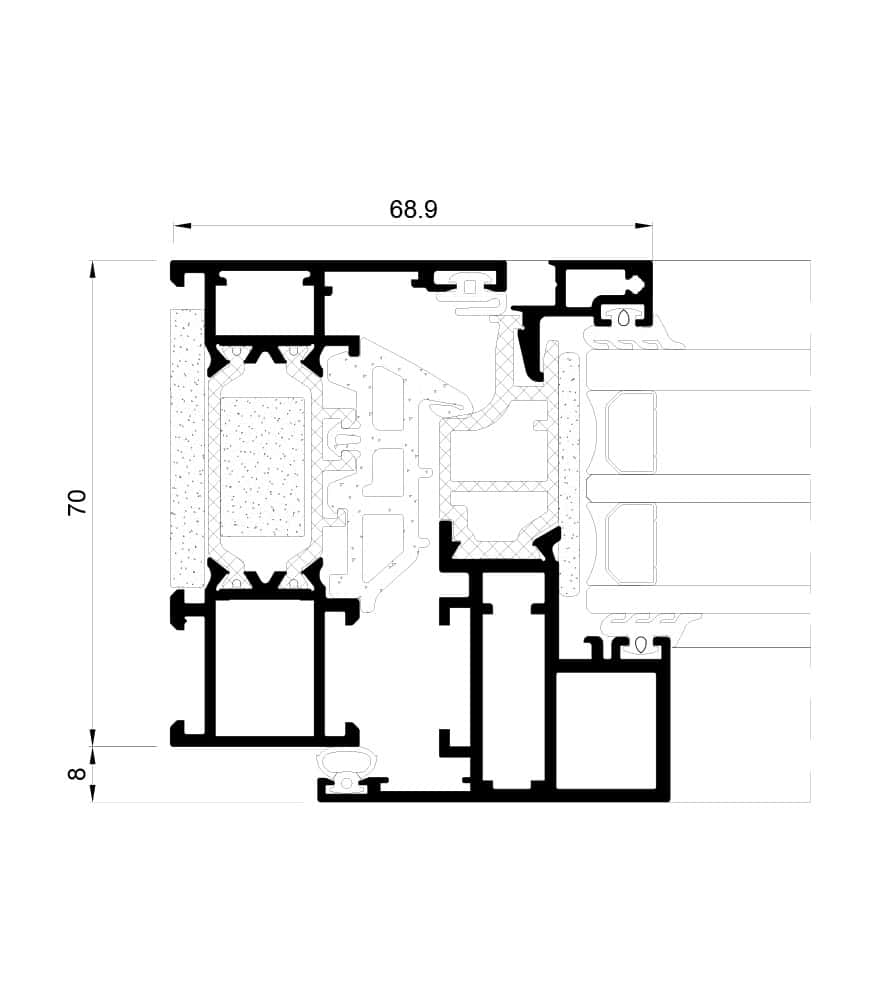

Cor 70 Industrial – Half-Hidden Sash
Window 1.9 mm
» Polyamide strip length
32 – 35 mm
» Maximum sash dimensions
Width (L) 1,500 mm
Height (H) 2,600 mm
» Maximum sash weight
160 kg
» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
Cor 70 Industrial: Uw ≥ 0.75 (W/m2K)
Cor 70 Industrial – Half-Hidden Sash: Uw ≥ 0.85 (W/m²K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 44 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1800
» Wind resistance
(EN 12210) Class C5
» Burgular resistance
Grade RC2 (WK2)
» Security test PAS24
Passed
» CSTB Laboratory DTA Certification
Avis technique – Ref. 6/17-2363
» ATG Certification
Ref. 3204
Reference test 1.23 x 1.48 m / 2 sashes
Security test: Reference test 1.1 x 2.4 m / 1 sash
Burgular test 1.47 x 2.52 m / 1 sash with EVO SECURITY hardware
