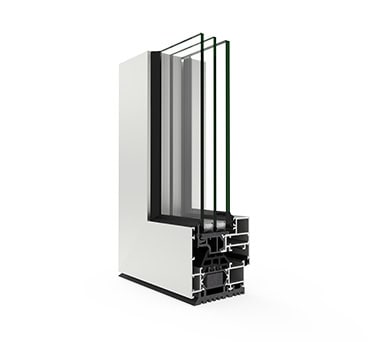

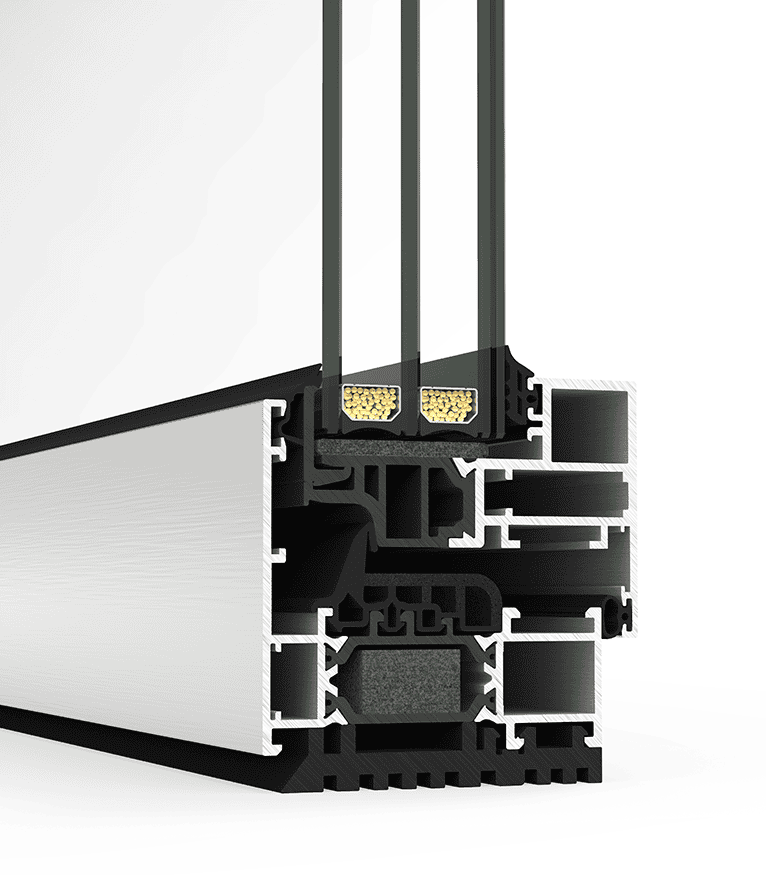

COR 70 Hidden Sash: A Window That Feels Like Art

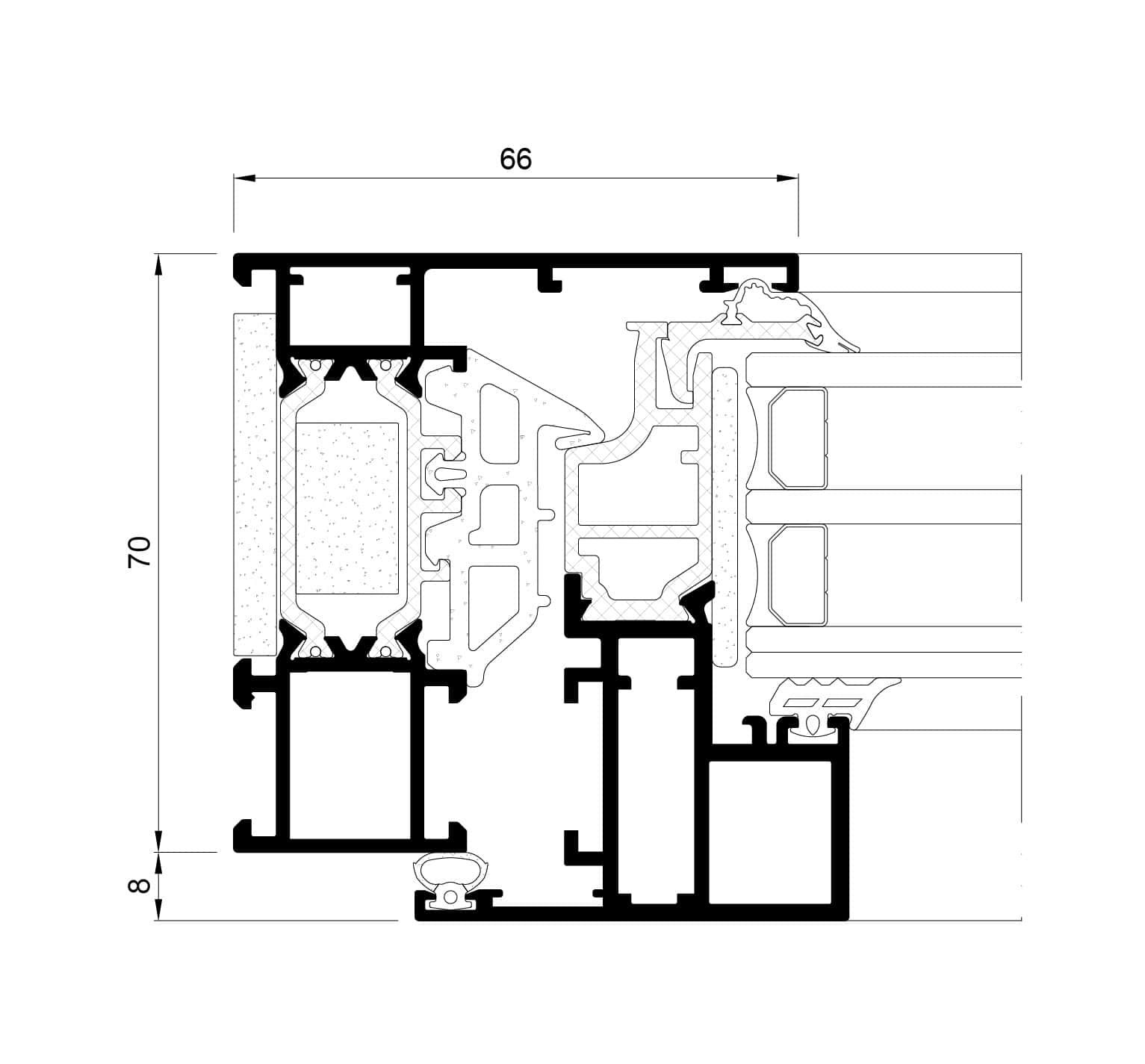

The COR 70 Hidden Sash has a sleek 66 mm sightline, like the 80 mm version.
It integrates the ARCH INVISIBLE handle, concealed hinges, and a drainage solution.
Elements that disrupt visual harmony are eliminated for a clean, modern design.
This system minimizes the aesthetic impact of window components for a seamless appearance.
It is compatible with all 70 mm frame depth systems for added flexibility.
A gasket at the frame's bottom replaces face drainage, ensuring efficient water evacuation.
The inward opening design simplifies fabrication and allows site-based frame installation.
» Glazing
Max. 40 mm
Min. 26 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only
Parallel Sliding

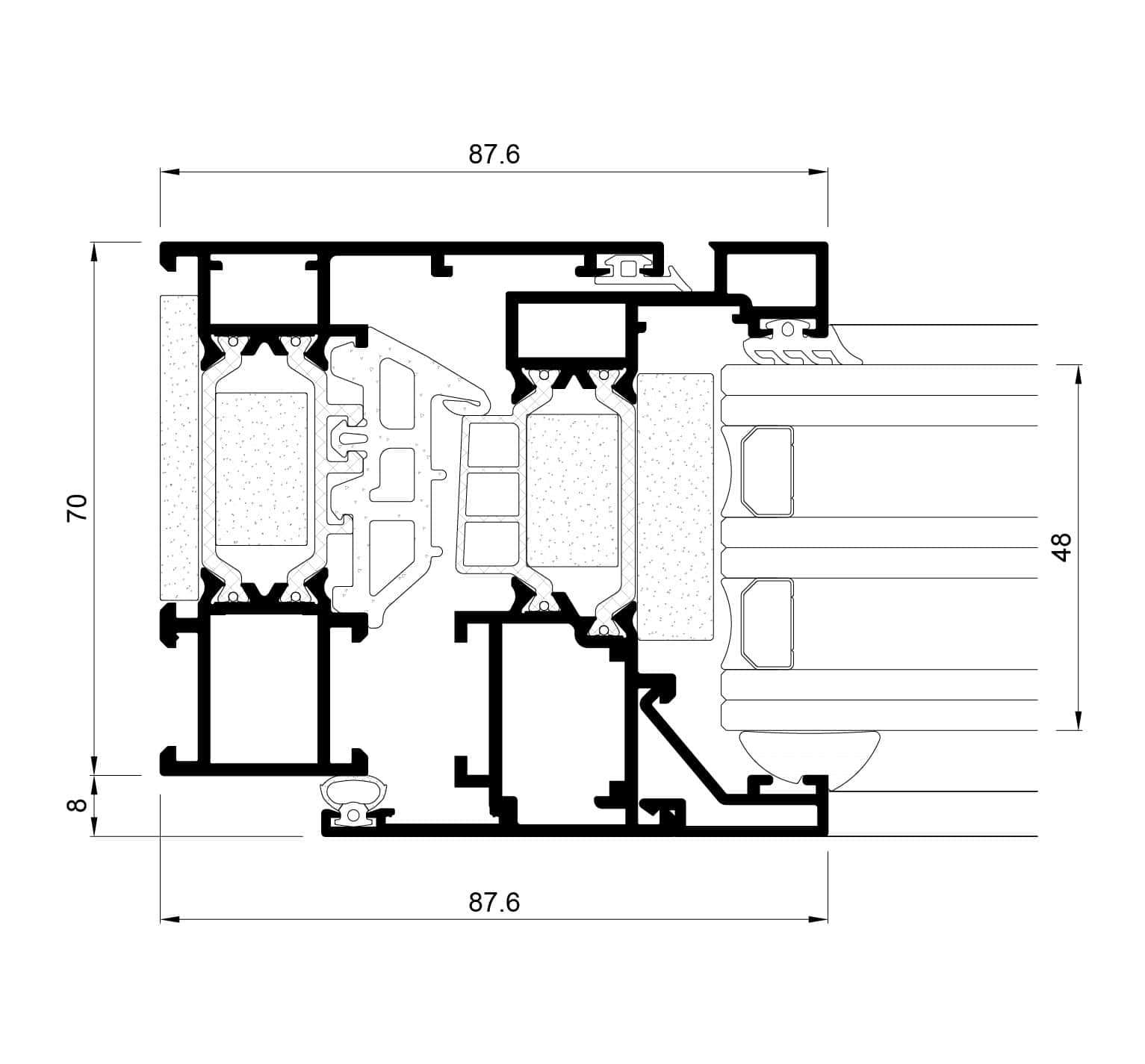

» Sightlines
Frame 70 mm
Sash 70 mm
» Profile thickness
Window 1.9 mm
» Polyamide strip length
35 mm
» Maximum sash dimensions
Standard Solution
Width (L) 1,300 mm
Height (H) 2,400 mm
HD Hinges (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm
» Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
Hidden sash – Uw ≥ 0,81 (W/m²K)
Half hidden sash – Uw ≥ 0,82 (W/m²K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 46 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1650
» Wind resistance
(EN 12210) Class C5
» Security test PAS24
Passed
» CSTB Laboratory DTA Certification
Avis technique – Ref. 6/17-2363
» ATG Certification
Ref. 3204
Reference test AEV 1.23 x 1.48 m / 1 sash
Security test: Reference test 1.1 x 2.4 m / 1 sash
