Millennium Plus Pivot Door: Modern Design and Superior Performance
This new entrance door from CORTIZO meets the latest design trends.
It supports large pivot openings, ideal for contemporary architectural projects.
The system delivers excellent thermal and acoustic performance with minimalistic sightlines.

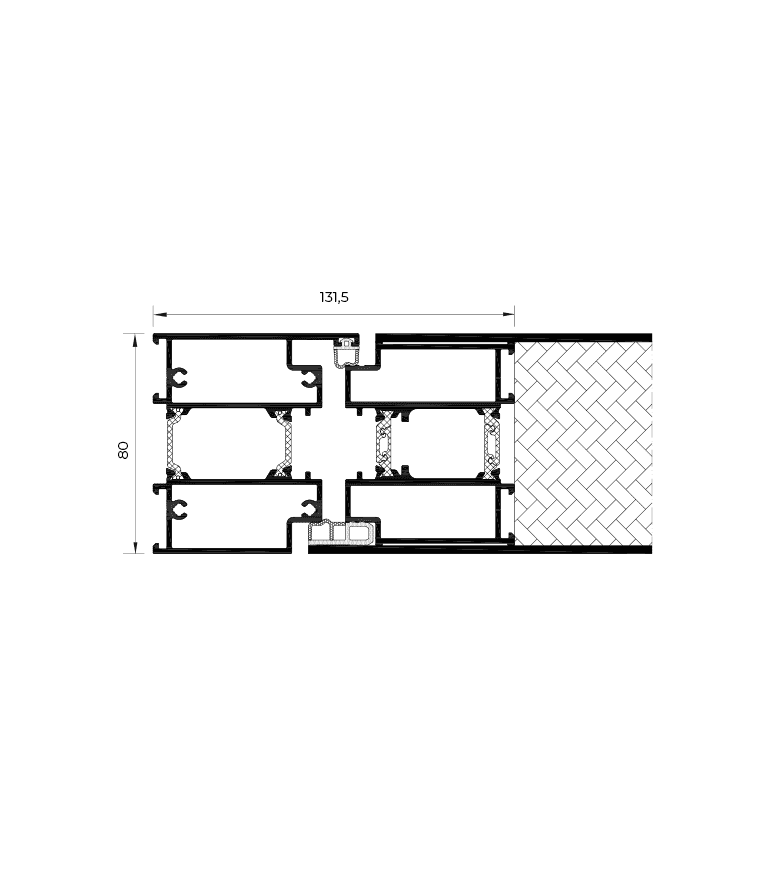

» Sightlines
Frame 80 mm
Sahs 80 mm
» Opening possibilities
Pivoting
» Panel
80 mm
» Profile Thickness
Door 2.0 mm
» Polyamide Strip Length
24 / 26 mm
» Maximum Sash Dimensions
Width (L) 2100 mm (1700* + 400 mm)
Height (H) 3000 mm
» Maximum Sash Weight
250 kg
Consult maximum weight and dimensions according to typologies
*Measure from the pivot axis
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
UD ≥ 0.86 (W/m2K)
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class 5A
» Wind resistance
(EN 12210) Class C5
Reference test 1,20 x 2,00 m / 1 Sash
