COR 80 Industrial TB
Minimalism for avant-garde projects. It has an interlock profile of only 63 mm, COR 60 Hidden Sash is presented as a hinged system that allows for more glazed surface.
Possibilities
» Security hardware
» Concealed hinges
» Glazing
Max. 34 mm
Min. 16 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Bottom hung

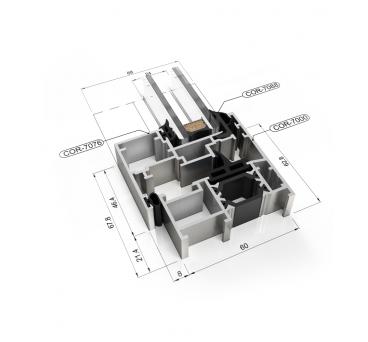

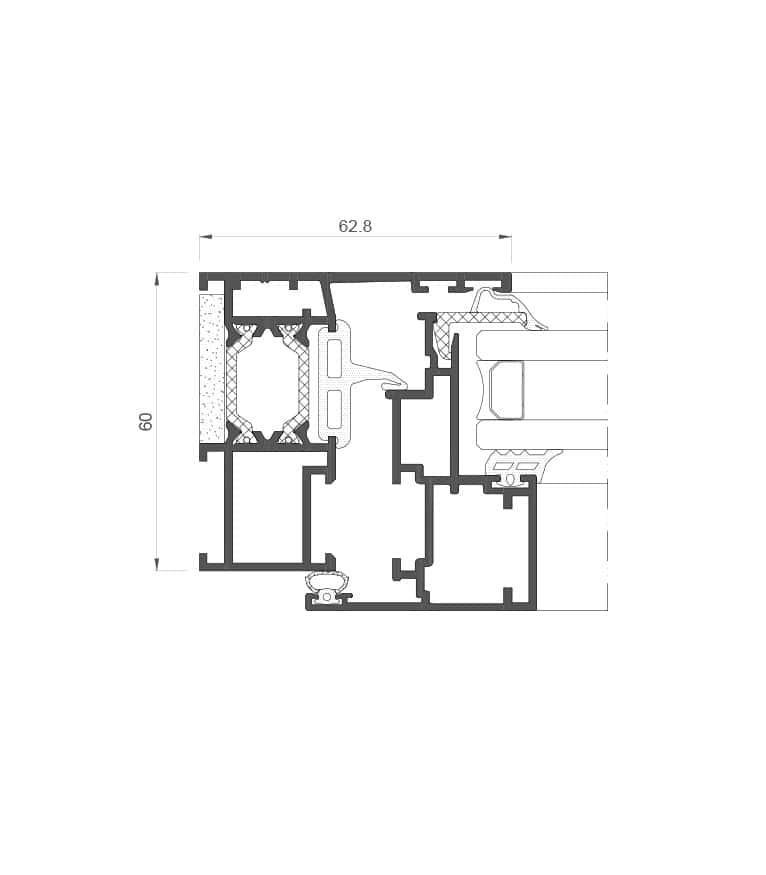

» Sightlines
Frame 60 mm
Sash 60 mm
» Profile thickness
Window 1.6 mm
Balcony 1.6 mm
» Polyamide strip length
24 mm
» Maximum sash dimensions
Width (L) 1,300 mm
Height (H) 2,400 mm
» Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
Uw ≥ 1.5 (W/m2K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 41 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class 9A
» Wind resistance
(EN 12210) Class C5
Reference test 1.20 x 1.16 m / 1 sash
