פרזול סמוי Arch Invisible

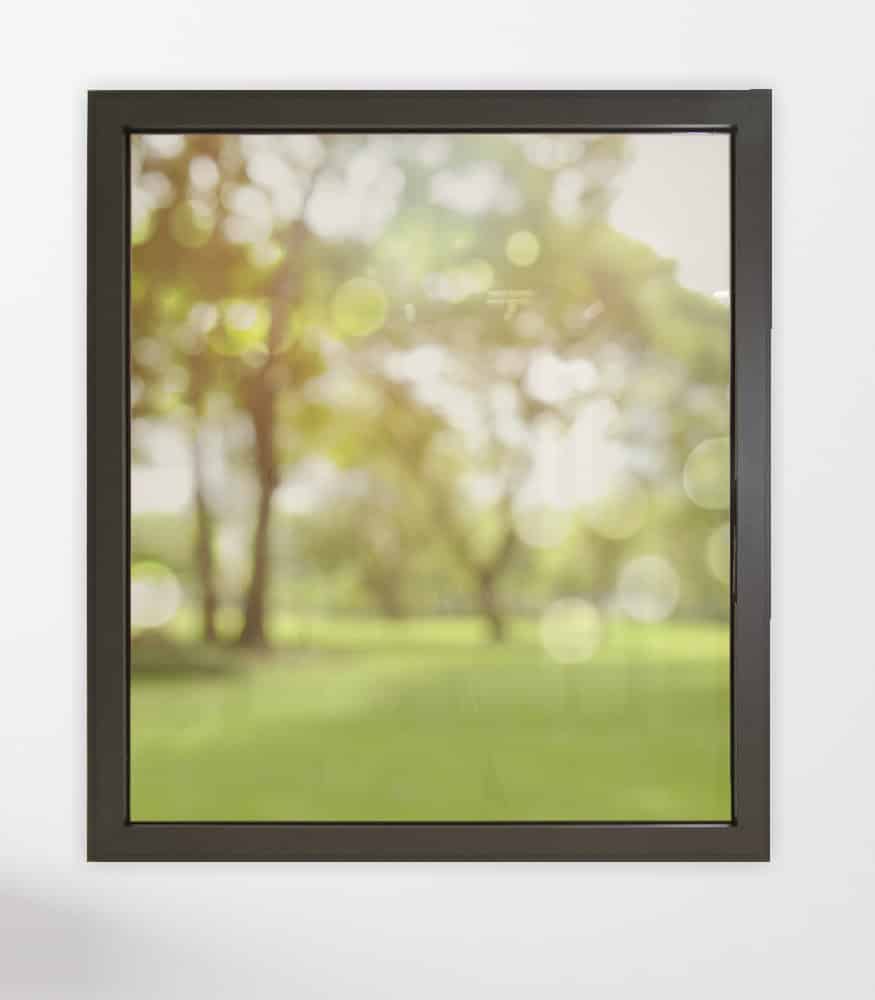

» The first invisible opening system in the market

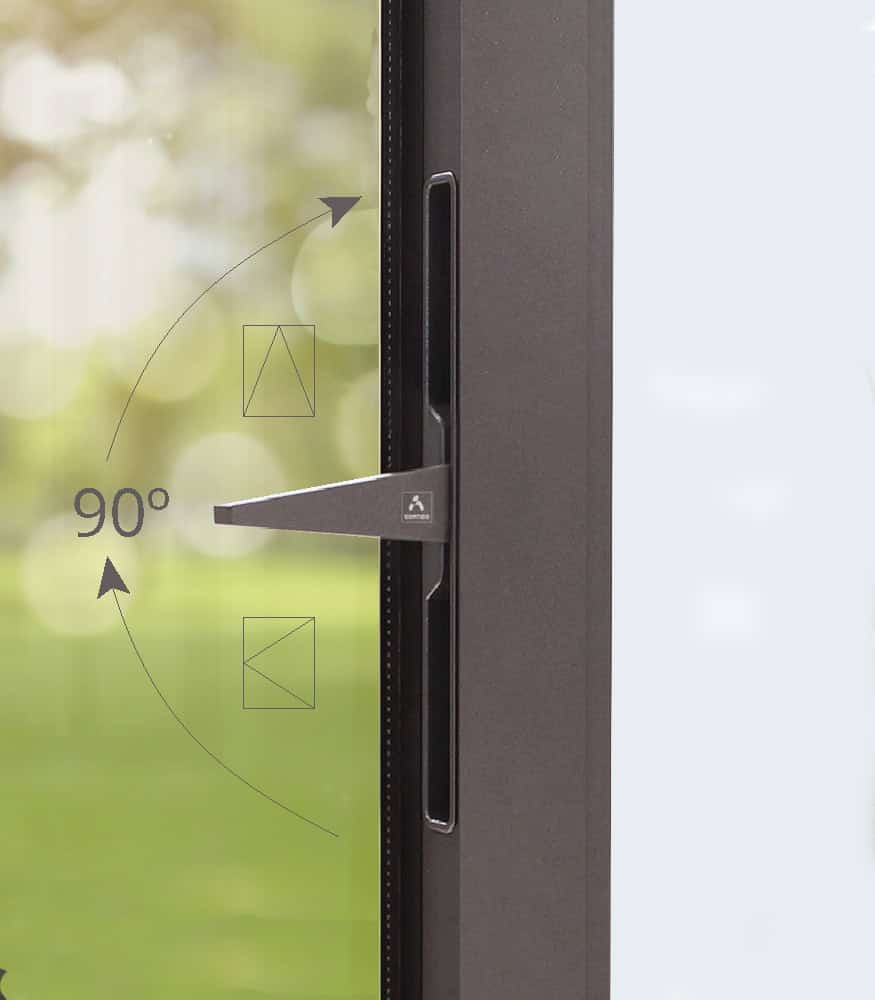

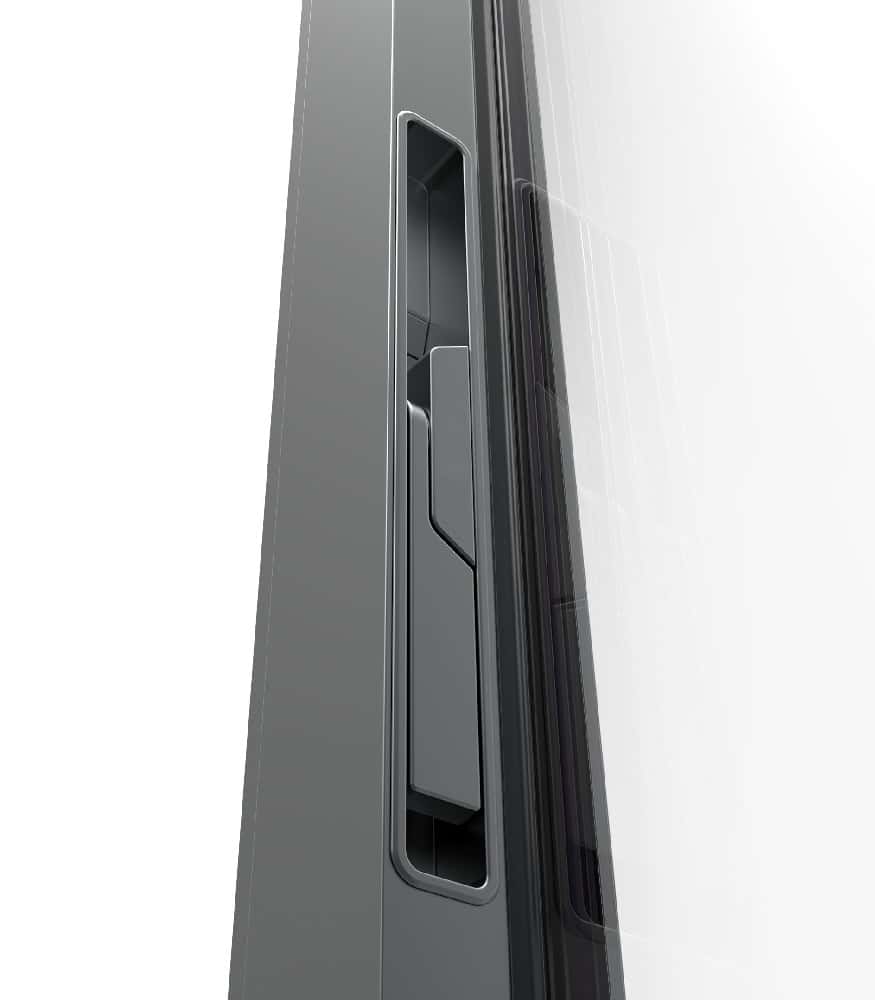

» Handle integrated within the sash. The handle is imperceptible from a front view
» Concealed hinges that consolidate the aesthetic purity of the system
» Availability:
– COR 80 HIDDEN SASH
– COR 70 HIDDEN SASH
» Glazing
Max. 40 mm
Min. 26 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only
Parallel Sliding
» Sightlines
Frame 70 mm
Sash 70 mm
» Profile thickness
Window 1.9 mm
» Polyamide strip length
35 mm
» Maximum sash dimensions
Standard Solution
Width (L) 1,300 mm
Height (H) 2,400 mm
HD Hinges (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm
» Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
» Transmittance
Hidden sash – Uw ≥ 0,81 (W/m²K)
Half hidden sash – Uw ≥ 0,82 (W/m²K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 46 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1650
» Wind resistance
(EN 12210) Class C5
» Security test PAS24
Passed
» CSTB Laboratory DTA Certification
Avis technique – Ref. 6/17-2363
» ATG Certification
Ref. 3204
Reference test AEV 1.23 x 1.48 m / 1 sash
Security test: Reference test 1.1 x 2.4 m / 1 sash
