» Maximum glazing thickness

30 mm

» Opening possibilities

Up to 6 sashes

Up to 3 rails

1 sash + 1 fixed / 2 sashes + 1 fixed

Pocket solution possibility in 1, 2, 3 & 4 sashes

Possibility of interior and exterior corner at 90º without mullion

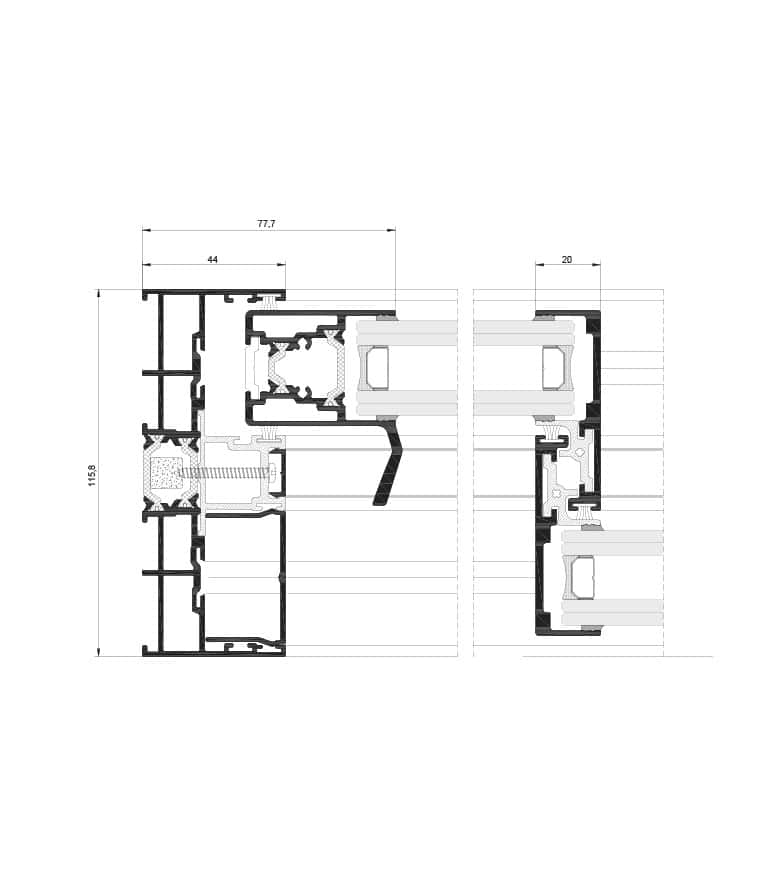

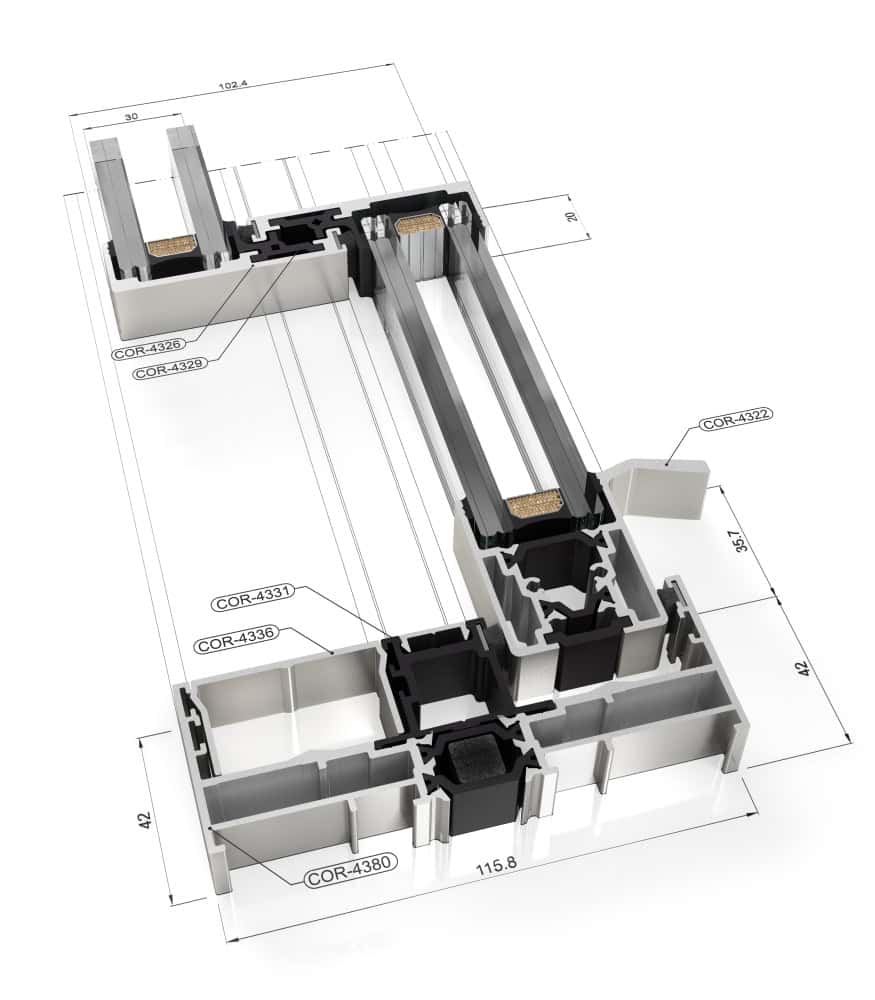

» Sections

Frame – 116 mm – 182 mm 3 rails

Sash – 37 mm

» Profile thickness

Door 1.7 mm

» Polyamide strip length

From 16 to 24 mm

» Maximum dimensions/sash

Width (L) = 2,500 mm

Height (H) = 3,000 mm

» Maximum weight/sash

320 kg

Please consult regarding maximum weight and dimensions for other opening types

» Finishes

Possibility of dual colour systems

Colour powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodised
